Magmaflo Rotary Vane Pump

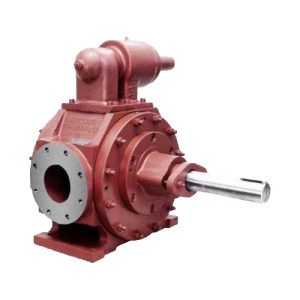

MAGMAFLO Positive Displacement Rotary Pump

The robust Magmaflo pump is an established range of positive displacement rotary pumps which have proven their reliability and efficiency for over twenty years.

FEATURES

• Designed for use in many arduous industrial applications: moving with ease, liquids, which vary in viscosity, from free-flowing fuel and light oils through to heavy duty bitumen and tars
• In one hour the impressive Magmaflo can move up to 130m³ of liquid at viscosities from 1.00CS - 44,000CD (200,000) SSU at temperatures reaching 180°C
• High output at slow speeds coupled with a smooth pumping action eliminates damage to the pumped product. This also means that the Magmaflo has greater reliability and pump life - a saving in costs with minimal maintenance and down time
• Tailor-made solutions to the most complex pumping problems are easy for the magmaflo which allow for maximum flexibility in combining pump elements, and a wide choice of materials
• Applications: Glucose & Molasses, Soaps, Syrups & Chocolate, Edible Oils, Paint & Varnishes, Crude & Lube Oils, Cellulose Acetates, Liquid Yeast & Glue, Melted Wax & Fats, Bitumen & Tar, Liquid Paraffin, Fuel & Light Oils, Hexanes & Resins

BENEFITS

• Self-Adjusting vanes sustain efficiency

  The Magmaflo pump maintains high volumetric efficiency throughout service. Because the rotor vanes are self-adjusting, internal pump slip is reduced to a minimum. Suction and discharge capacity is unimpaired even after arduous service. Compensation for wear on the vanes is affected as the vanes are able to slide outward within their slots thereby maintaining the same fine clearance against the pumping chamber.


• Sliding Vanes Cost Less To Maintain

  The Magmaflo pump is designed to allow for easy maintenance without special tools and in most cases without even having to disconnect the pump from the piping system. To change vanes, simply remove the outer head and replace critically worn vanes as and when necessary. Routine servicing is just as easy, keeping downtime and maintenance costs to a minimum.
