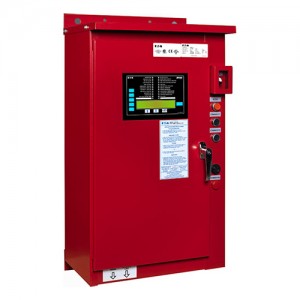

EATON Diesel Engine Fire Pump Controller

EATON Diesel Engine Fire Pump Controller

The DIESEL Plus Fire Pump Controllers from Eaton are designed to control and monitor 12 or 24 volt, diesel fire pump engines and are among the most technically advanced diesel engine controllers available.

They are an enhanced version of the original microprocessor-based, FD100 Series of diesel engine controllers. Programming is straightforward due to the use of the core firmware and menu structure utilized in the LMR Plus Series of electric controllers.

The controller can be ordered with the option to display and output current values and status, on command, from various software protocols.

FEATURES

Communication

• Embedded Web Page
• Communication Types: USB, Ethernet, Modbus
• Field Connections
  • Standard Inputs: Remove Start, Fuel Spill, Deluge Valve, Low Suction, Interlock On, Pump Start, Low Fuel, Programmable Inputs (9)
  • Programmable Inputs: Up to 9 additional, programmable inputs
• Standard Output Relays: Future #1, Future #2, Low Fuel, Auto Mode, Common Alarm
• Optional Output Relays
• Engine Run Relays
• Common Alarm Relay
• Alarm Relay Rating
• Programmable Outputs
• Power / Voltage: 100Vac to 240Vac
• Dual Output: 12 or 24Vdc. Factory set to 12Vdc.
• Line Filter
• AC Power Disconnect and DC Power Disconnect

Standards & Certification

• Underwriters Laboratories (UL)
• Factory Mutual Research (FM)
• New York City building code
• CE mark and U.B.C. / C.B.C Seismic requirements
• NFPA 20 standards
